     Mechanical Seals ---    SPLIT Seals    ---

Previous ‹‹ » Next

5050

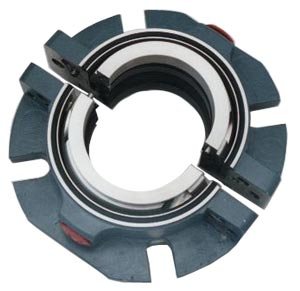

Split seals for Pumps & Agitators (Dry running seal)
Seal series 5050 (For Agitators & pumps)
Standard Style
Face Materials

Carbon, Silicon Carbide.


Metal Parts

SS 316, Hastelloy-C, Alloy 20, Monel, Titanium.


Secondary Seals
  Elastomers

Applications
  Utility Pumps, Transfer Pumps, Agitators. (As Dry Running Seal)

Seal Characteristics
  Fully Split Components
  Ease of Installation
  Balance Seal Faces
Operating Limits
Shaft Diameter d1 :  2" to 8" (50mm to 200mm)
Pressure p p :  14 bar
Temperature t :  Amb бн+140 o C
Velocity v :  3600 rpm. (Max.)
API Plans : 02, 11, 21, 32
