88 B2

     Mechanical Seals ---    Multi Coil Spring Seals    ---

Previous ‹‹ » Next

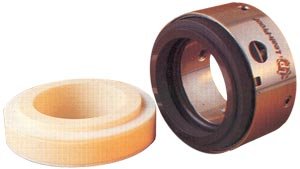

88 B2

Outside Mounted Balanced Seal Single Acting, Independent of Direction of Rotation
Seal series 88 B2
Standard Style
Face Materials

Carbon, Ceramic (99.5%), Silicon Carbide


Metal Parts

AISI 316, Hastelloy-C, Monel, Alloy - 20


Secondary Seals
  Elastomers, FEP, PFE

Applications
  Corrosive Chemicals
  Hydrocarbons
  General & Light Chemicals

Seal Characteristics
  Single acting
  Outside Mounted
  Independent of direction of rotation
  Balanced
Operating Limits
Shaft Diameter d1 :  10 бн 100 mm
Pressure p p :  35 bar
Temperature t :  -45 бн 260 o C
Velocity v :  20 m/s.

Series 88 B2 is multiple spring externally mounted balanced seal with 'O' ring as secondary sealing member. Various seal face materials and elastomers can be offered for wide service application. This seal can also be used for corrossive services as the mettallic components ie. Retainer, Spring, Thrust Ring etc. do not come in contact with liquid to be sealed.
